Smena-8m

LOMO Smena-8m is one of the most famous Soviet cameras. In fact, Smena-8m is a symbol of the Soviet camera industry.

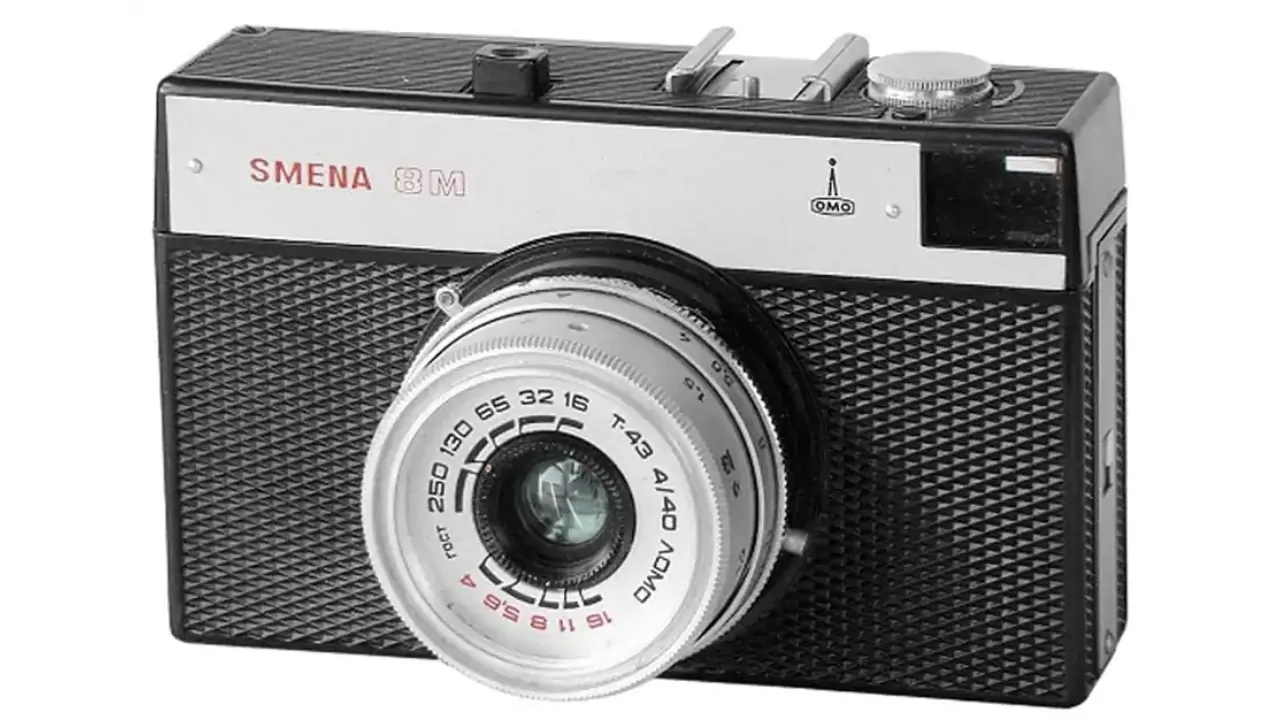

smena 8m feature image

Smena-8m is listed in the Guinness Book of Records as the most massive camera in the world.  In total, more than 21 million copies of Smena-8 and Smena-8m were produced.

Smena-8m Specifications

  • Type: 35mm scale focus camera
  • Manufacturer: LOMO plant
  • Production period: from 1970 to 1995
  • Format: 24x36cm on 135 film
  • Lens mount: fixed lens
  • Lens: Triplet T-43 4.0/40
  • Shutter: leaf shutter with speeds from 1/15 to 1/250 sec.
  • Viewfinder: optical vewfinder
  • Lighmeter: none
  • Selftimer: none
  • Weight: 280 grams

Basic Information

These cameras were in almost every Soviet family. Most of the family archives were shot exactly by this camera. It was Smena-8m was the first camera of many Soviet and Russian photographers.

Close-up of the Smena-8M lens barrel with 'Made in USSR' engraving, highlighting its Soviet-era production

The camera, although extremely simple, has a unique style. It is very minimalistic, and the elements of design and control look great even today.

Of course, the Soviet industry was not very fond of innovations. This explains the fact that, in terms of functionality, the camera is no different from the very first Smena cameras released in the 50s. Nevertheless, this camera has a unique character and is loved by millions of people today.

Close-up of the Smena-8M camera lens with its T-43 40mm f/4 triplet design and manual controls for aperture, shutter speed, and focus

The Smena-8M camera was produced at the LOMO plant from 1970 to 1995. And for all these 25 years, almost no changes have been made to the camera. Yes, this is so Soviet.

Smena-8m Lens

The Smena 8M is equipped with a T-43 40mm f/4 triplet lens. It consists of three elements in three groups, with a single-layer coating. The lens produces acceptable sharpness in the center, with noticeable softness toward the edges. Focusing was done by a distance scale (located at the bottom of the lens) and a symbol scale (located at the top of the lens).

The aperture is adjusted using a small ring around the front of the lens. It may feel inconvenient at first, but users typically adapt over time. The lens performs well for its price. It is a classic Cooke triplet design, an optical scheme developed in the 19th century. This contributes to the characteristic vintage look of the photographs.

Detailed view of the Smena-8M lens barrel, showing the aperture and shutter speed control rings
Detailed close-up of the Smena-8M lens, showing the T-43 40mm f/4 triplet optics and manual adjustment rings

Despite its simplicity and even archaic design, the T43 lens is one of the camera’s strongest aspects, as it is capable of producing high-quality images. This optical formula was widely used in early 20th-century portrait photography for a reason. As mentioned before, the Cooke triplet design delivers a sharp center with softer edges and produces a slight swirling bokeh. While this effect is less pronounced than in the Helios 44 due to the smaller aperture, it still adds texture to photos.

The f/4 aperture may be limiting in some situations, especially for night photography, as low-light shots become more challenging with the Smena. For best results, it is recommended to use the camera primarily in daylight and with the aperture wide open. At f/4, the lens produces its most characteristic image quality, while at f/8 and beyond, the sharpness increases significantly, but the unique rendering of the lens is diminished.

Close-up of the Smena-8M shutter cocking lever, which must be manually engaged before each shot

Smena-8m Shutter

The camera features a leaf shutter with speeds ranging from 1/15s to 1/250s, along with a Bulb (B) mode for long exposures. The shutter is independent of the film transport system, meaning multiple exposures can be made without advancing the film. It is manually cocked before each shot using a small lever on the lens barrel. The lack of a built-in light meter requires the use of an external meter or Sunny 16 rule for exposure settings.

Weather-based exposure scale on the Smena-8M lens barrel, helping users select shutter speed and aperture settings
Smena-8M shutter speed scale with settings from 1/15s to 1/250s, including a Bulb mode for long exposures

This shutter was used in Smena cameras from the very first models and is one of the positive aspects of the camera. It has a simple design and requires little to no lubrication, allowing it to function reliably in various weather conditions without significantly affecting shutter speed accuracy.

Despite its simplicity, the shutter provides five fixed shutter speeds, the same number found in much more expensive Soviet Zenit cameras, which could cost ten times more than a Smena. Considering that the Smena was designed for beginners and schoolchildren, this range of shutter speeds is more than adequate.

Smena-8M lens controls, displaying focus, exposure settings, and the shutter cocking crank for manual operation

Another advantage of this shutter is its quiet operation. This makes the Smena-8M a suitable camera for street photography, especially when combined with its 40mm lens, which offers a range of creative possibilities. Additionally, unlike focal plane shutters, it produces minimal vibration, reducing the risk of motion blur in photographs.

View inside the film camera showing its simple leaf shutter mechanism, which operates independently of the film advance

Body and Controls

The Smena 8M has a lightweight plastic body with a basic, boxy design. The film advance is controlled by a knob on the top plate, and a frame counter is located next to it. The shutter release button is positioned on the top of the body. There is a cold shoe mount on top for attaching accessories, but no built-in flash synchronization.

Front plate of the soviet camera with its logo and branding, featuring the classic LOMO design

Unlike the earliest models, the Smena-8M has a rewind mechanism, which was considered a significant improvement by Soviet standards.

However, in the Soviet Union, an innovation in one area often came with a drawback in another. For example, the frame counter is positioned in such a way that it is easy to accidentally turn it with a finger.

Rewind knob, located on the camera's top plate for manually rewinding the film after use
Frame counter on the soviet camera, requiring manual resetting after loading a new film roll

Ease of Use

This camera is entirely manual, requiring the user to set shutter speed, aperture, and focus distance for each shot. The zone focusing system includes pictograms on the lens barrel, which help estimate distances without precise measurements.

Although the primary focusing method is zone or scale focusing, you can make the process easier by using an external rangefinder. LOMO specifically produced Blik rangefinders for Smena cameras, which could be mounted on the cold shoe.

Blik external rangefinder mounted on the cold shoe for more precise focusing

To focus with an external rangefinder, first, determine the correct focus distance using the rangefinder. Then, transfer the measured distance to the camera’s lens focus ring. Once set, compose the shot through the viewfinder and take the photograph.

Since the shutter must be manually cocked before each exposure, users must remember this step to avoid missed shots. The simple construction and lack of automation make it suitable for learning the basics of film photography, but it may take time to get used to the controls.

Blik rangefinder scale, used for measuring focus distance and manually transferring

Conclusion

So, what can we say about the Smena-8M camera? It is a well-known model and a notable symbol of the Soviet era. This camera embodies the essence of the USSR—cheap, simple, and functional, yet reliable in performing its task.

The lens is very simple and based on a 19th-century design. However, this means that you get exactly what you expect from a film camera—a retro effect in your photos.

The Smena-8M provides not only the look of vintage photographs but also the experience of using fully Soviet-made photo equipment.

Photographs taken with this small Soviet camera have a distinct atmosphere. Even the so-called “flaws” mentioned earlier contribute to this unique character.

SMENA-8M Example PHOTOs

A striking portrait of a woman in a black headscarf and coat standing in front of an old Soviet-era building, shot with a Smena 8M camera
Triplet T-43 4.5/40, Fomapan 400
A black and white film photograph taken with a Smena 8M camera, showing a woman in a black leather coat opening a mysterious case against a decayed Soviet-era wall
Triplet T-43 4.5/40, Fomapan 400
A woman in a leather coat and headscarf sits on a discarded door in front of a classic Soviet Lada car, captured on Smena 8M film camera
Triplet T-43 4.5/40, Fomapan 400
Black and white film photo taken with a Smena 8M camera, featuring a woman in a fur hat and coat standing next to an old wooden building, evoking a Soviet-era aesthetic
Triplet T-43 4.5/40, Fomapan 400
Still life composition featuring a classical bust, an open book, and a skull, shot on a Smena-8M in black and white
Triplet T-43 4.5/40, Fomapan 100
Black and white film photograph of a skull placed on a crumbling brick wall with a baseball bat resting beside it, taken with a Smena-8M
Triplet T-43 4.5/40, Fomapan 100
An empty swing covered in frost, hanging in a desolate winter landscape, shot on a Smena-8M
Triplet T-43 4.5/40, Svema NK-2SH
A black and white photo of an old, abandoned swing in front of a worn-out Soviet-era apartment building, taken with a Smena-8M
Triplet T-43 4.5/40, Svema NK-2SH
Black and white film photograph of a Soviet UAZ van parked in a residential area, taken with a Smena-8M
Triplet T-43 4.5/40, Svema NK-2SH
A gated entrance to an old brick courtyard, bathed in soft winter sunlight, captured on a Smena-8M
Triplet T-43 4.5/40, Kodak Gold 200
A snowy Soviet-era bus stop with people waiting, captured on a Smena-8M film camera
Triplet T-43 4.5/40, Kodak Gold 200
Evening traffic under a colorful sunset sky, captured with a Smena-8M on 35mm film
Triplet T-43 4.5/40, Kodak Gold 200
